SH-600

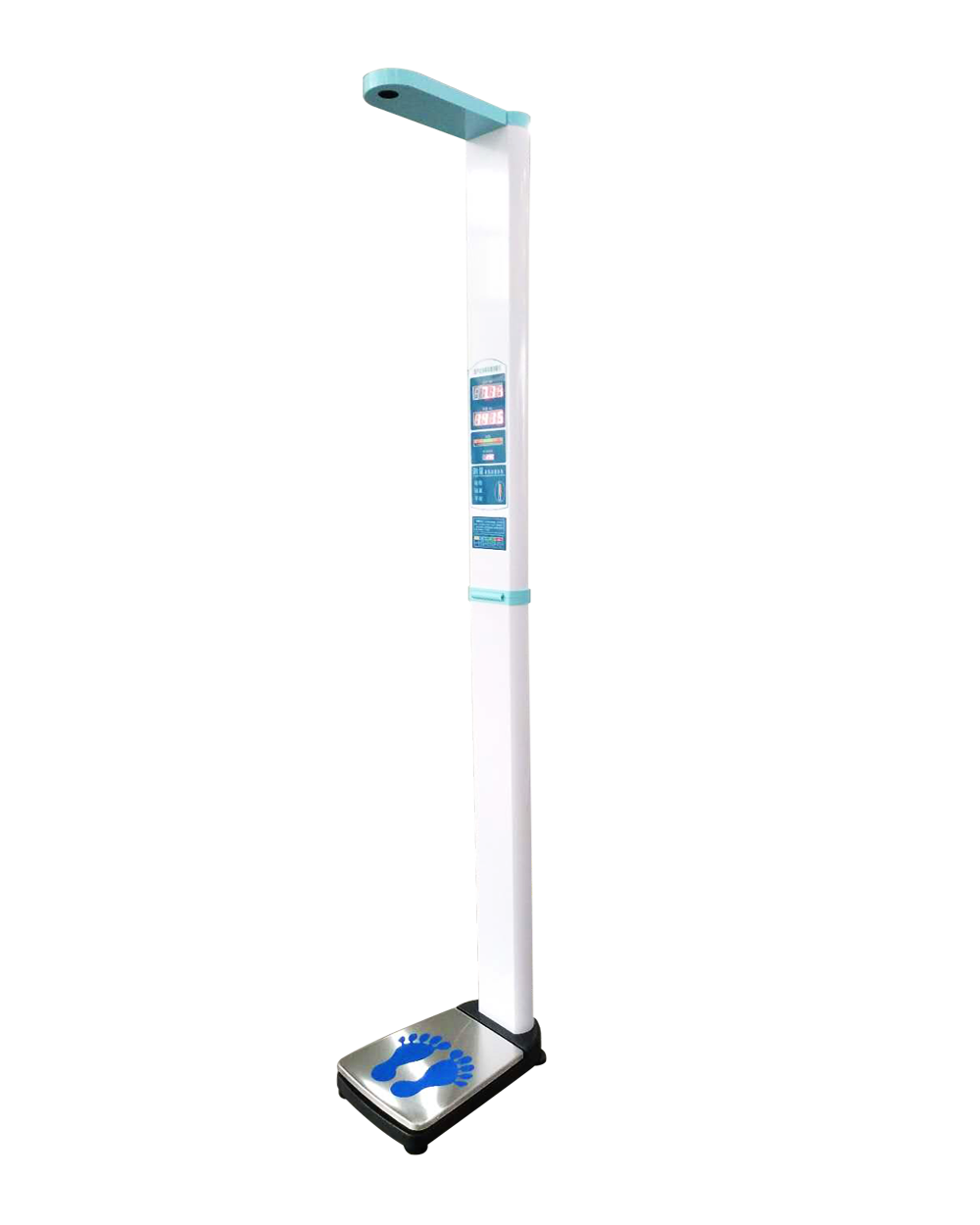

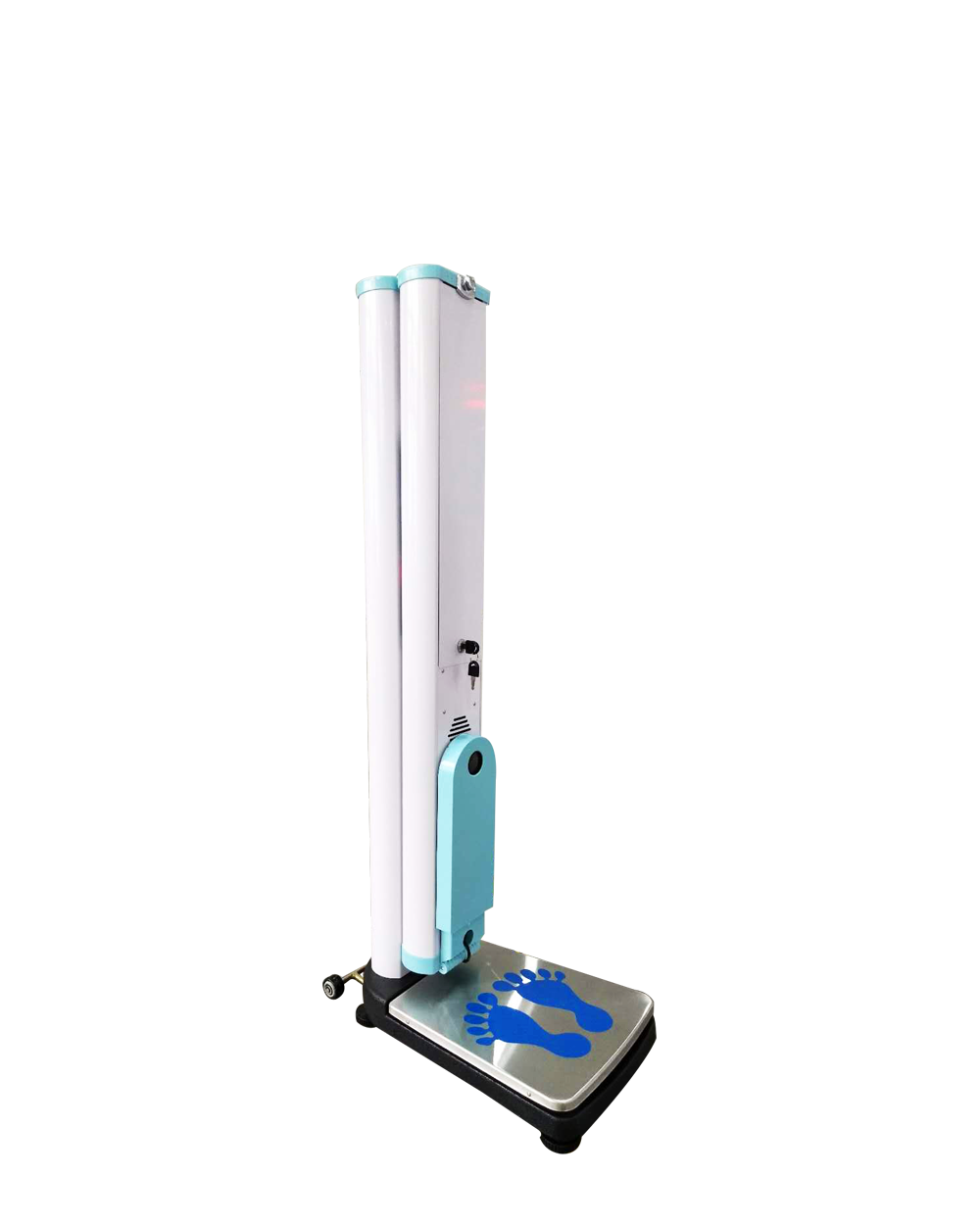

Portable ultrasonic automatic height and weight measuring instrument

Product introduction

Automatic measurement of height (imported ultrasonic), weight, body shape (BMI), intelligent voice; liquid crystal display multimedia advertising (Video + picture + WeChat promotion), intelligent interconnection (WeChat /WiFi/3G/RS232/ Bluetooth /App/ cloud interface)

Consult now

Product information
Technical parameter
After-sales service

name	SH-600 Portable ultrasonic automatic height and weight measuring instrument
Brand	Shanghe
products	SH-600
Manufacturers	Zhengzhou Shanghe Electronic Technology Co., Ltd
phone	15638813509 fax:15638813509
address	No.121 Wutong street,High-tech Zone,Zhengzhou city, Henan province,China

Technical Parameters
basic function

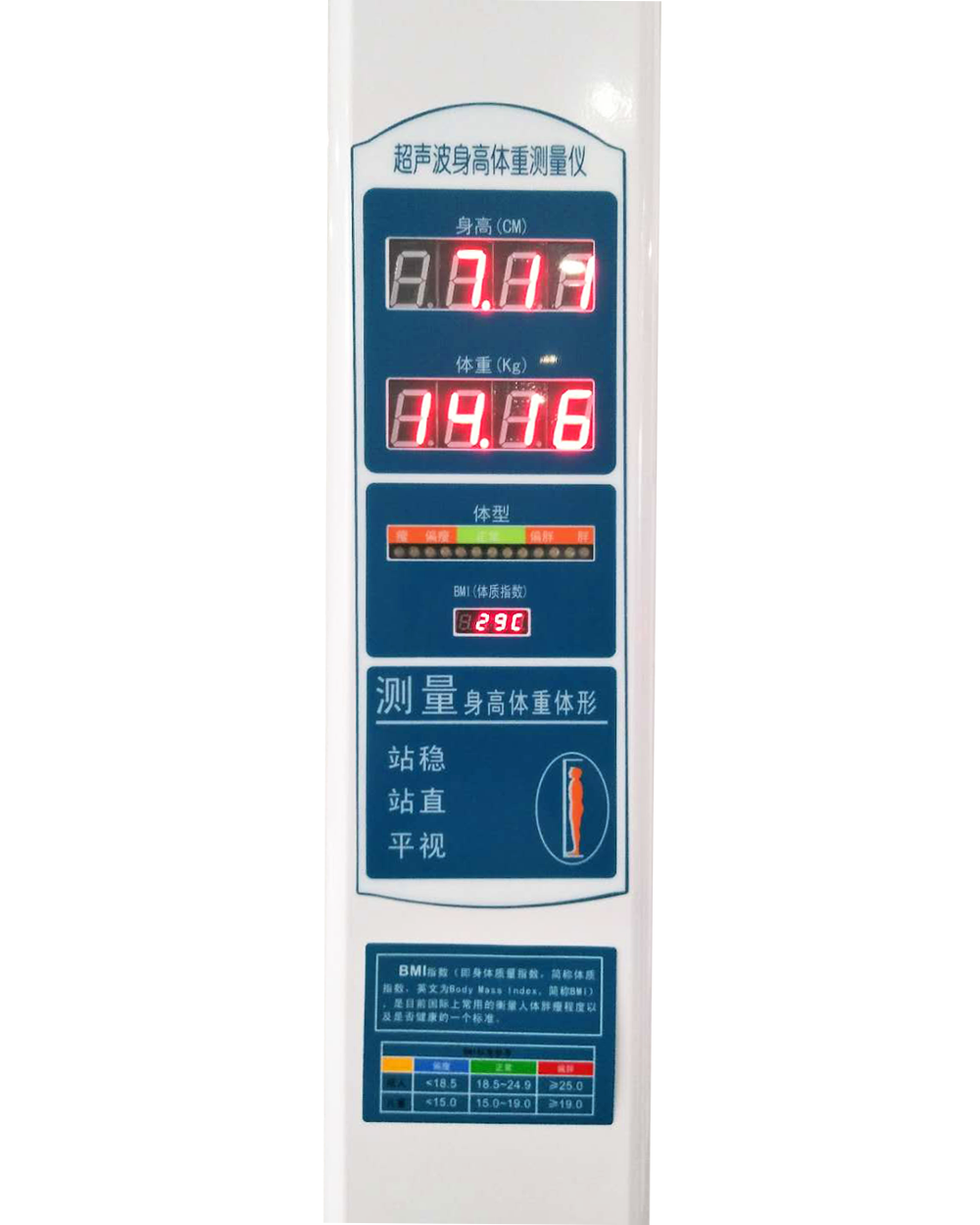

	1.Ergonomic shape design 2.Ultrasonic measurement of height (no touch),Us ultrasonic probe 3.Weight measurement by precision sensor 4.Intelligent computing body index 5.Large screen digital LED display 6.Automatic voice broadcast measurement results 7.High speed thermal printing, automatic paper cutting function (matching) 8.Display indoor temperature and current time 9.The measured data can be stored in more than ten thousand pieces. 10.Can be connected to the computer, RS232 serial port, you can choose Bluetooth transmission.
Measurement mode	Ultrasonic measurement, unique ultrasonic compensation device
measuring range
	height：20cm-210cm weight：2- 200kg
Print Configuration	Choose whether to print, randomly configure the print bar to start / end the advertisement text (screen operation).
measurement accuracy
	height：±0.5cm or ±0.1cm weight：±0.01kg or ±0.1kg
supply voltage	AC160V-250V,50HZ
Power consumption	≤10W
Output serial port	RS232
Machine weight	22kg
Recommended use	It measures 480 people per hour and is suitable for hospitals, schools, community service centers, health huts and so on.
Voice Announcements	The voice prompt is the best standing qualification of the surveyor, so that the measurement result is more accurate.
Manufacturer	Zhengzhou Shanghe Electronic Technology Co., Ltd
Manufacturers Hotline	(+86)15638813509

This product has a one-year global quality assurance, life-long technology and after-sales service.

Provide software and hardware system customization services.

Provide wechat public number promotion and advertisement operation services.
